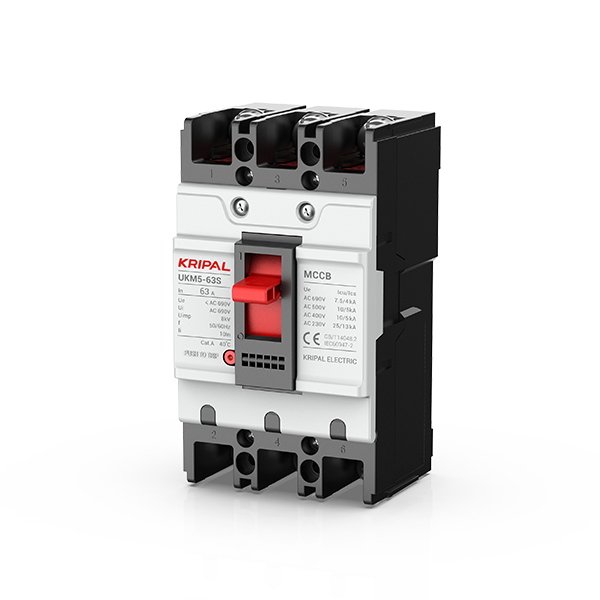

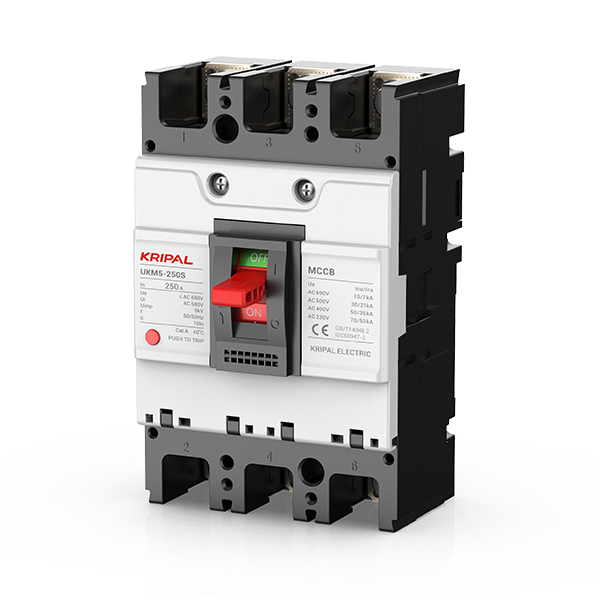

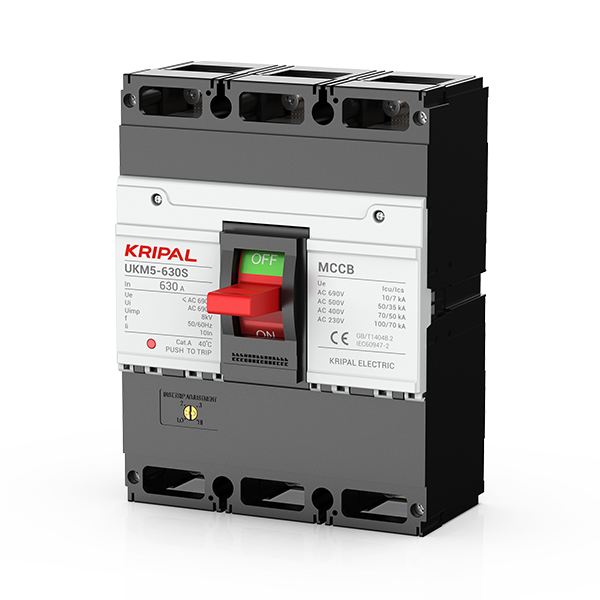

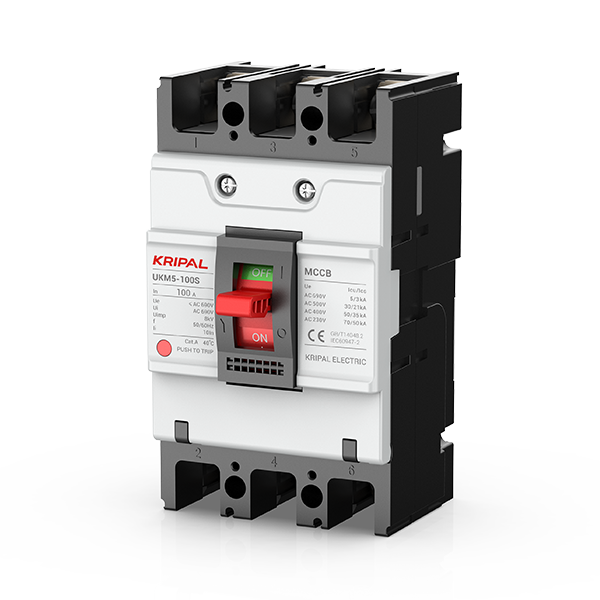

Kripal UKM5-MCCB 30A to 630A-3Pole

Model: UKM5-100

In Stock

₨ 3,200 – ₨ 26,500

Ampere

Clear

Description

Here are typical specs you should check for the specific model (values may vary by variant):

Rated operational voltage (Ue): up to AC 690 V.
Rated insulation voltage (Ui): AC 750 V. zjkripal.en.made-in-china.com
Rated impulse withstand voltage (Uimp): e.g., 8 kV. zjkripal.en.made-in-china.com
Breaking capacity: high breaking capacity versions available (for example one spec for 3-pole 200 A AC version shows breaking capacity of 105 kA).
Poles: 3P (three-phase) or 4P (three-phase plus neutral) configurations possible.
Frame size and adjustability: The “frame” (UKM5) supports a certain current range; within the frame there are models/sub-frames (e.g., “UKM5-100”, “UKM5-400S”, “UKM5-630”). For instance “UKM5-100” model is cited. kripal.com+1

Confirm the exact In (rated current) you require (e.g., 30 A, 63 A, 125 A, 250 A, 400 A, 630 A).
Confirm the exact model/variant code (frame size, short-circuit capacity, pole count).
Confirm Ue (rated operational voltage) fits your system (e.g., 400 V, 690 V).
Confirm breaking capacity (Icu and Ics) suits your fault level in PSU or distribution board.
Confirm trip characteristics (thermal + magnetic), adjustable settings if required (for motor feeders, etc).
Check accessories: shunt trip, auxiliary contacts, undervoltage trip, remote signalling.
Check mounting/connection: whether busbar or cable connection, torque values, clearances.
Check local standards/regulations in Pakistan (IEC vs local code) for certification.
Confirm derating factors (ambient temperature, altitude, grouping of breakers) for correct sizing.
Brand: KRIPAL
Model: “UKM5-400S 400A (3P)” (example)
Rated current: 400 A
Breaking capacity: AC 230 V up to ~100 kA (for that model)
Poles: 4 (for that variant)
Standard: IEC 60947-2
