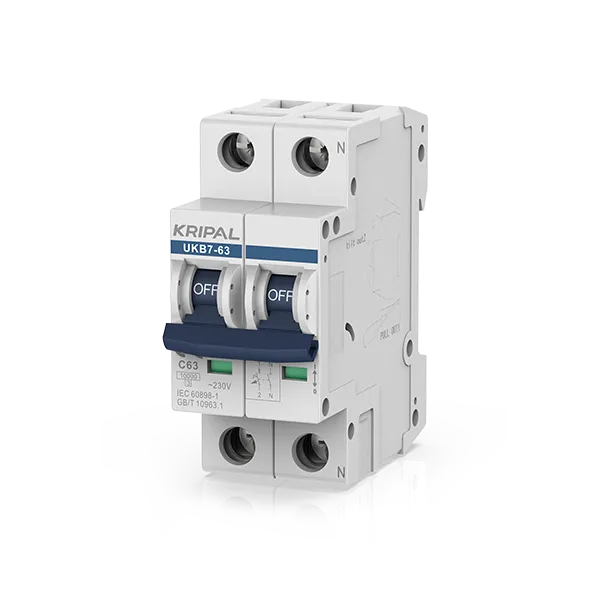

KRIPAL UKB7-63 2P AC Miniature Circuit Breaker (MCB)

Model: UKB7

In Stock

~~₨ 1,999~~ ₨ 1,500

In Stock

Add to wishlist Compare

Other people want this. 167 people have this in their carts right now.

Categories: Electronics & Accessories, MCB AC Circuit Breaker, Solar Equipment Brand: Kripal

Description

Brand: KRIPAL | Model: UKB7-63 2P | Category: MINIATURE CIRCUIT BREAKER

The current tripping setting is accurate, and the breaking capacity is up to 10kA.

With extremely high current limiting capacity, it can achieve high selectivity. Double terminals on both sides are suitable for bus bars and single core conductors. Bus bar multi-function accessory series can be used on both sides.

The connecting screw of the composite groove has large torque. The connection is firm and fast. The incoming direction of the power supply is arbitrary. With DC products, it can be widely used in the fields of telecommunications or electric locomotives.

This product complies with the latest standards IEC898 and GB/T 10963.1

✅ Key Specifications & Features

The UKB7-63 series is a low-voltage miniature circuit breaker designed for AC systems (typically 50 Hz). zjkripal.en.made-in-china.com+3kripal.com+3kripal.com+3
It supports a rated voltage of AC 230/400 V for 2-pole configurations. zjkripal.en.made-in-china.com+1
Breaking capacity is up to about 10 kA (in some variants) for AC faults. kripal.com+2kripal.com+2
Typical feature: a “C”-curve trip characteristic, e.g., model UKB7-63/2/C16 is the 16 A version, C-curve type. zjkripal.en.made-in-china.com+1
It is manufactured by Zhejiang Kripal Electric Co., Ltd., China. zjkripal.en.made-in-china.com+1
